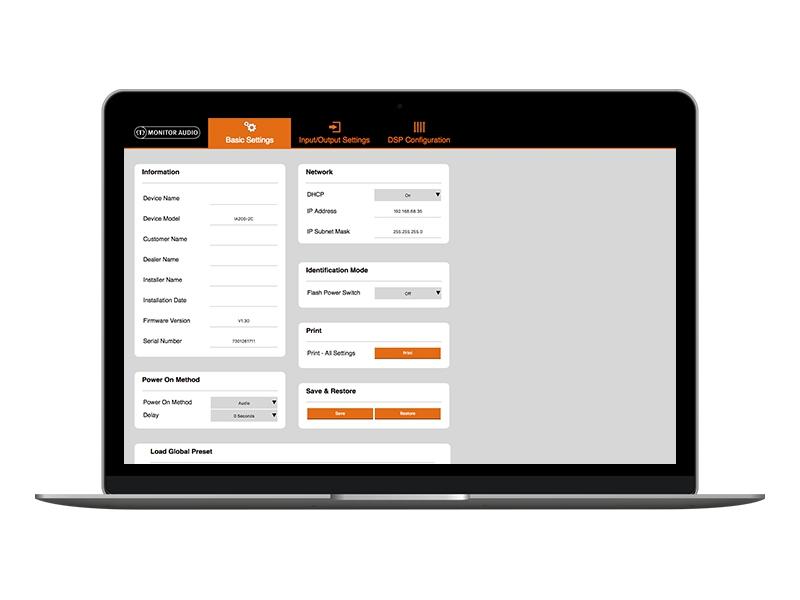

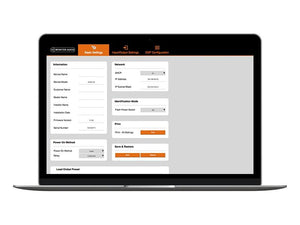

The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. As a Monitor Audio ‘Connect’ amplifier, it utilises their Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.
A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.
The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. A ‘Connect’ amplifier, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.
Important!
Click here to install the latest IA200-2C firmware. Please ensure the firmware is up to date before downloading IR Codes, IP Codes or the Crestron/Control4 drivers, which can be found in the Downloads area.
FEATURES | |
Connect' IP Control | Yes |
Channel Number | 2 (1 Stereo Pair) |
Power (W / Channel) | 4 ohms | 200 W |
Power (W / Channel) | 8 ohms | 150 W |
Power (W / Channel) | Bridge (8 ohms) | 470 W (1CH) |
Input Impedance | 20 K ohms |
Output Impedance (Loop RCA) | 600 ohms |
Input Sensitivity | 100 mV / 1 W, 1230 mV – Full power |
Maximum Input Voltage | 2.9 V |
Signal to Noise (SN | R) |
Frequency Response | 5 Hz – 50 kHz |
Total Harmonic Distortion THD + N@1 KHz | 0.0003 |
IP Communication | TCP/IP (RJ 45 10/100 Base T) |
Mains Operating Voltage | 100 – 120 V @ 60 Hz, 220 – 240 V @ 50 Hz |
Fuse Rating | 5 A (T5AL ~ 250VAC) |
Standby Power Consumption | <0.5 W (green mode) |
Networked Standby Power Consumption | <2 W |
DIMENSIONS | |
Rack Height | 1U |
Dimensions (Without Feet (H x W x D)) | 42.4 x 438 x 427 mm |
Dimensions (With Feet (H x W x D)) | 52.8 x 438 x 427 mm |
Width (including rack brackets) | 482 mm |
Weight | 5.3 kg |
Download the manual.
