The KA-1000-THX subwoofer amplifier is the powerful driving force behind the Klipsch THX® Ultra2 system. This model offers rock-solid dependability under the most demanding conditions and allows listeners to experience all the power, detail and emotion of their favourite music and movies.
- Delivers 1000-watts into a 4 ohm load
- Can support two high performance subwoofers

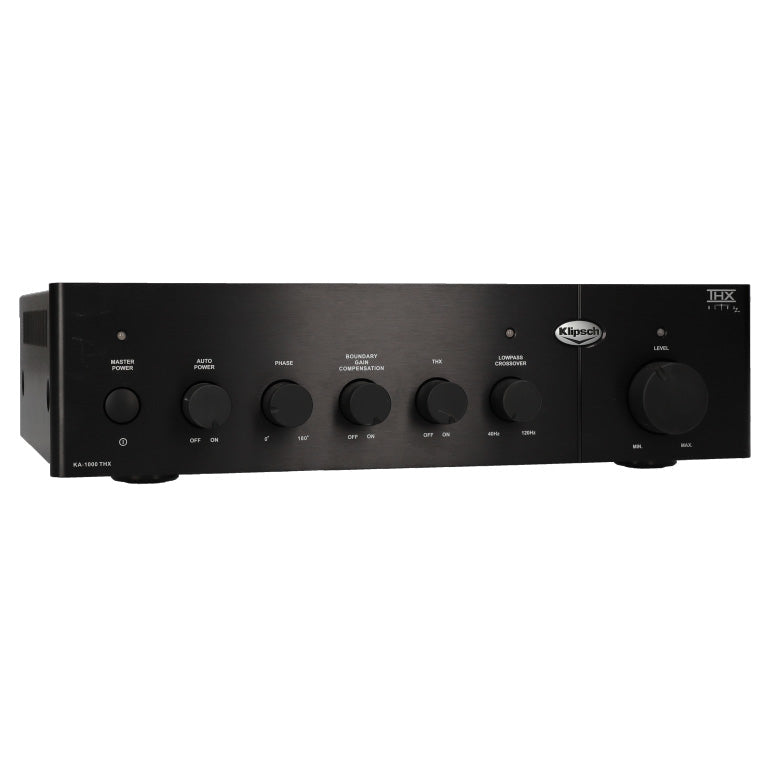

- Finished in black with a machined aluminium front panel and knobs
This full-featured Class D amplifier, which can be conveniently located near the rest of the installation's electronics, has a built-in, defeatable, low-pass crossover and level control, boundary-gain compensation switch, completely variable phase control, and an auto power function. This high-performance amplifier has a massive toroidal power supply that is capable of delivering 1000-watts into a 4 ohm load. It can also support two high performance subwoofers and has a left and right RCA pass-through.
Finished in black with a machined aluminium front panel and knobs, the KA-1000-THX uses professional style NL2 Speakon® outputs for the high current transfer of power to the subwoofer.
The KA-1000-THX delivers a combination of flexibility, reliability and sound quality that is unmatched.
|FREQUENCY RESPONSE||20Hz-1kHz +0/-3dB|
|ENCLOSURE TYPE||Use only with KW-120-THX subwoofer enclosures (either one or two)|
|AMPLIFIER||High-Efficiency Class D|
|AMPLIFIER POWER||FTC Rated Power: 500W into 8 ohms, 1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD
Dynamic Power: 2050W into 8 ohms, 3025W into 4 ohms @ 5% THD
|AUTO POWER ON||2 second ON delay, 15 minute OFF delay|
|LOW PASS CROSSOVER||Continuously variable from 40-120Hz, 24dB/octave slope above 120Hz (non-THX mode)|

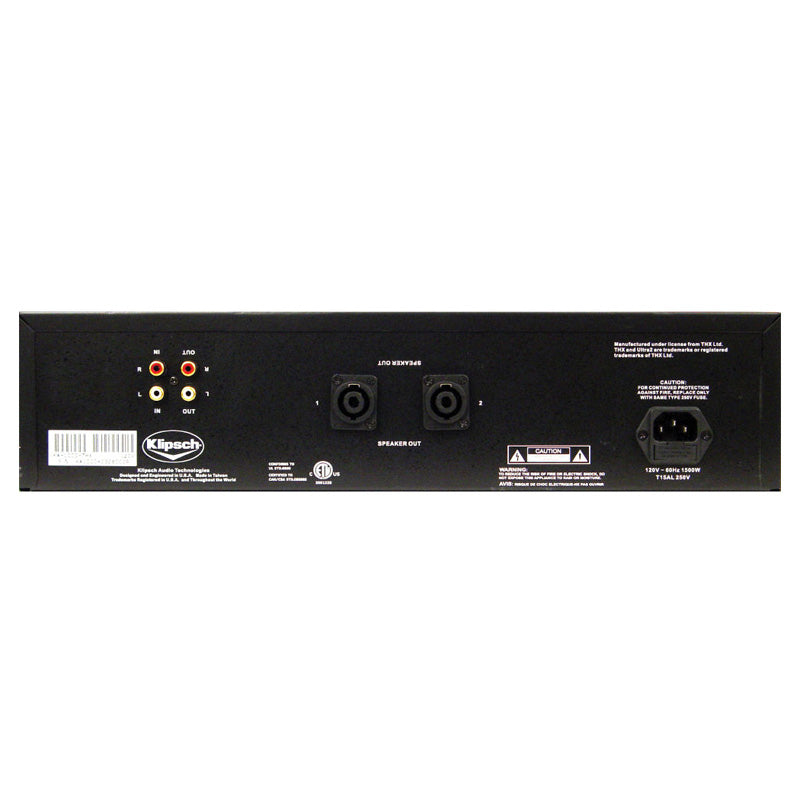

|INPUTS||2 Gold-plated RCA phono jacks|
|OUTPUTS||2 Gold-plated RCA phono jacks (unfiltered) / 2 Speakon® NL2 jacks|
|PHASE||Continuously variable from 0 to 180 degrees|
|DIMENSIONS||4.75" (12.1cm) H x 17.5" (44.5cm) W x 12.25" (31.1cm) D|
|WEIGHT||27 lbs. (12.3kg)|
|FINISH||Black anodized aluminum|
|VOLTAGE||110/120 VAC 60Hz|
|EXPORT VOLTAGE||230 VAC 50/60Hz|
|FEATURES||THX On/Off, Boundary Gain Compensation On/Off|
