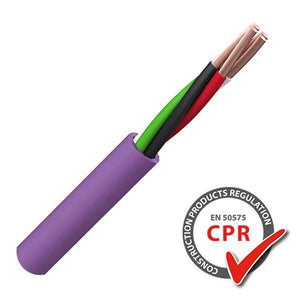

This high performance 4-core 14AWG TruSound speaker cable combines flexibility with optimum performance levels through highly stranded OFC (Oxygen Free Copper) conductors.
LSHF (Low Smoke Halogen Free) rated with a distinctive violet jacket for easy identification. Ideal for professional installations in pubs, clubs, gyms, hotels and high-end residential applications.
Features:
- Professional grade speaker cable
- LSHF (Low Smoke Halogen Free)
- OFC (Oxygen Free Copper) conductors
- Easy strip jacket, free from talcum
This cable is supplied as 50m or 100m drums. For custom lengths up to 500m please contact us for pricing and availability.
PLEASE NOTE ALL SPEAKER CABLES ARE SUPPLIED WITHOUT BANANA PLUGS
Construction
Conductor Material: 99.999% Oxygen Free Bare Copper
Number of Strands: 105/0.16mm
Insulation Material: Low Smoke Halogen Free (LSHF)
Number of Cores: 4
Sheath Material: Low Smoke Halogen Free (LSHF)
Sheath Colour: Violet
Core Identification: Red, Black, White, Green
Electrical Characteristics
Nominal Conductor Resistance: < 8.5 Ω/km
Insulation Resistance: > 200 MΩ.M
Voltage Rating: 450/750V AppliestoCEm arkedFS C/T ru brandedstockonly
Test Voltage: 2.5kV for 5 Minutes
Physical Characteristics
Overall Diameter: 9.1 ± 0.3mm
Min. Bend Radius: 15 x OD
Temperature Rating: 0°C to +70°C
Weight: 165 kg/km
Standards
Flame Retardant: BS EN 60332-1-2
Low Smoke Generation: BS EN 61034-2
Halogen Gas Emission: BS EN 60754-1&2
RoHS3 Compliant: Yes
CE Compliant: LVD (2014/35/EU), CPR (305/2011)
CPR Classification: Eca (EN50575:2014+A1:2016)
-
