B&W CT SW10 Subwoofer_01

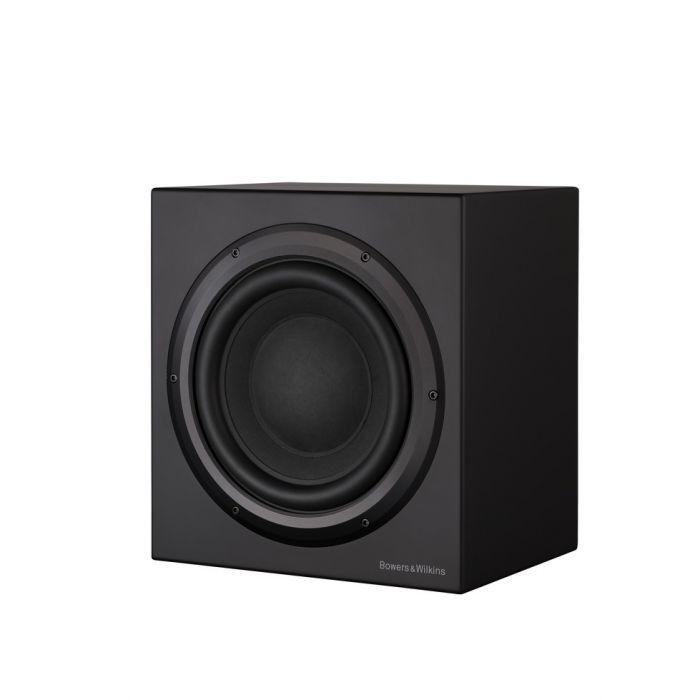

B&W CT SW10 Subwoofer

Regular price £615.00 Sale

Shipping Information

  • Order before 12pm for delivery on the next working day. Weekend orders will be dispatched on the next working day.

  • Free shipping to the UK for orders over £49, or a shipping charge of £10 will apply.

The most compact model in B&Ws range of passive Custom Theatre subwoofers, the CT SW10 uses a 25cm paper/Aramid fibre/resin composite bass driver to deliver solid, powerful bass, mounted in a sealed enclosure for easy installation in cabinetry or walls.
Amplifier power output 1000W
Analogue Outputs 1x XLR socket, link out 3.5mm jack - 12V trigger on/standby (overrides manual standby setting) 3.5mm jack - 12V trigger equalisation movie/music 1x Neutrik® Speakon® 4-pole speaker socket 2x pairs of Binding Posts
Drive Units 1x Ø250mm (10 in) paper/Aramid Fibre bass unit
Features Front panel: Rotary volume (line in) Rotary low-pass filter frequency (4th-order Linkwitz, 40Hz - 140Hz) Low-pass filter defeat 2-posn switch Phase 0º/180º 2-position switch Bass extension 3-position switch Movie/music EQ 2-position switch On/auto/standby 3-position switch Status LED Fault LED Rear panel: Model select 3-position switch (CT SW10/CT SW 12/ CT SW15)
Finshes Available Black
Frequency range -6dB at 18Hz and 25/140Hz adjustable (EQ at A) (with SA1000 subwoofer amplifier)
Frequency response ±3dB 26Hz – 40/140Hz adjustable (EQ at A) (with SA1000 subwoofer amplifier)
Impedence 33kΩ (input)
Inputs / Connections 2x RCA Phono socket, line in 2x RCA Phono socket, link out 1x XLR socket, line in
Input voltage *
Net weight 6.45kg (14.3 lb)
Product dimensions Height: 100mm (3.9 in) [88.5mm (3.5 in) plus feet] Width: 430mm (16.9 in) Depth: 322mm (12.7 in) Front panel Height: 2U 88.1mm (3.5 in)
Power consumption 34W – Idling
Warranty 2 Years

Download the brochure.

Download the manual.
