Naim CI-NAP 101 Mono Power Amplifier

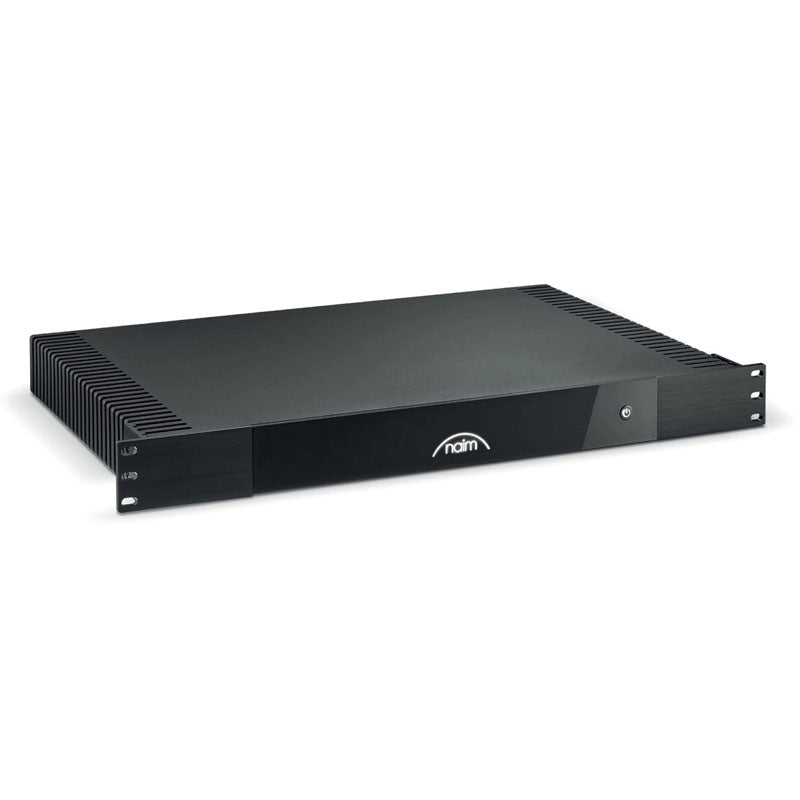

The CI-NAP 101 is an ultra-quiet mono power amplifier compatible with 70V/100V line array loudspeakers. Compact and rack-mountable for easy, discreet installation, it is ideal for powering subwoofers or integrated hi-fi speakers that require a lot of power, while offering exceptional audio quality. What's more, it can be combined with an audio-video processor for tailor-made and ultimate installations.
Like the other products in the CI Series range - CI-Uniti 102 and CI-NAP 108 - CI-NAP 101 has been conceived, designed and manufactured by Naim engineers to complement Focal integrated loudspeakers and form a sensational sound installation. Capable of operating with an output load of 2 ohms, it is the ideal solution for amplifying the 1000 IWLCR Utopia loudspeakers accompanied by two 1000 IWSUB Utopia subwoofers from Focal. The excellence of excellence, discreetly in the walls.
Key Features

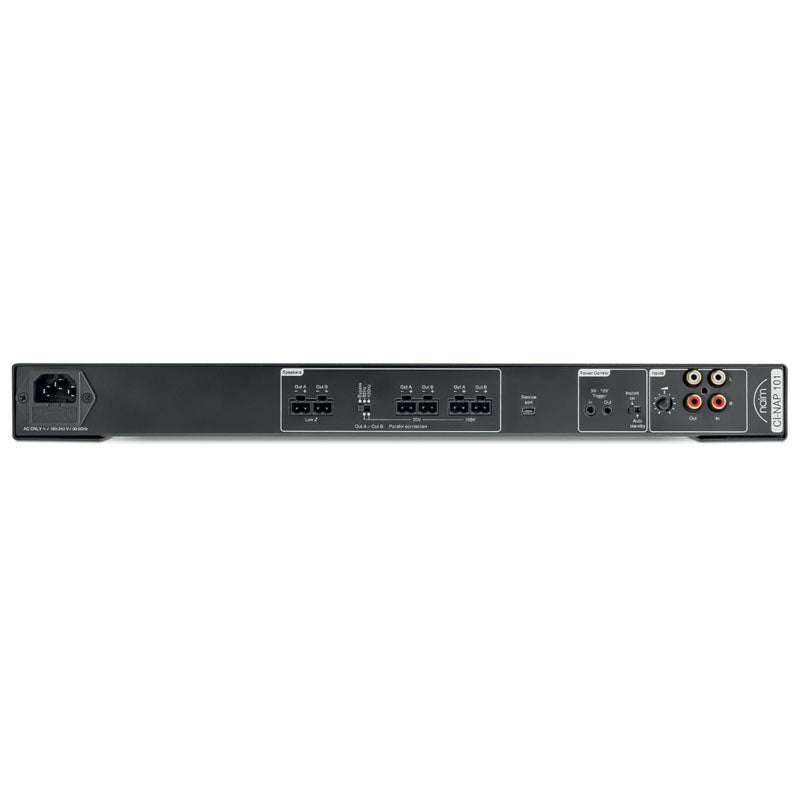

- Stereo RCA inputs and stereo RCA outputs for series connection
- Two Euroblock outputs for easy parallel connections between speakers
- High impedance 70V/100V line amplification with selectable high-pass filter
- Level control
- Input signal detection with automatic power-down after 20 minutes
- Universal 100V to 240V mains power supply
| Type | Amplifier |
| Number of channels | 1 |
| Power low impedance | 8Ω - 500W 4Ω - 800W |
| Power high impedance | 100V - 240W 70V - 150W |
| Input connections | Analogue – Stereo RCA - Combined to mono - (47 kΩ) |
| Output connections | Line - Stereo RCA Low Impedance - Euroblock 70V - Euroblock 100V - Euroblock |
| Total Harmonic Distortion (THD+N@1 kHz) | <0.008% |
| Gain | 29dB |
| Signal-to-noise ratio | 110dB (A - Weighted) |
| Frequency response (-3dB) | Low impedance - 3Hz - 70kHz High impedance - 50Hz/120Hz - 25kHz |
| Operating power supply | 100V to 240V +/-10%, 50/60Hz |
| Wired automation | 12V in/out |

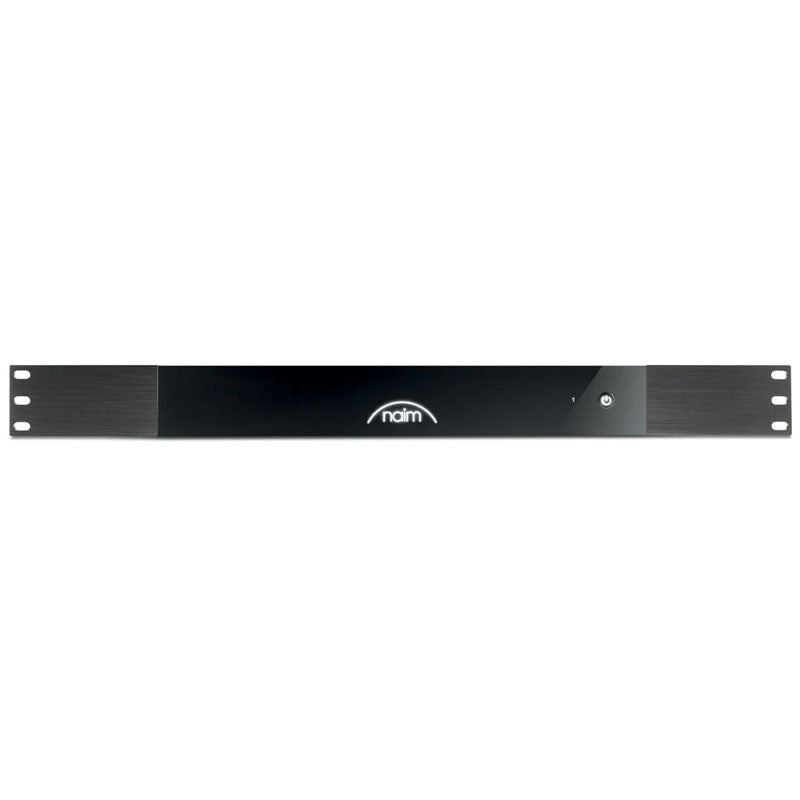

| Rack height | 1U |
| Dimensions (H x L x D) | 13/4x173/8x113/4" (4.45x44x30cm) |
| Weight | 19.62lbs (8.9kg) |
| Nominal power consumed | 100W |
| Power consumption in standby mode | 0.5W |
| Operating temperature | 5°C to 35°C |
| Storage temperature | -20°C to 60°C |
