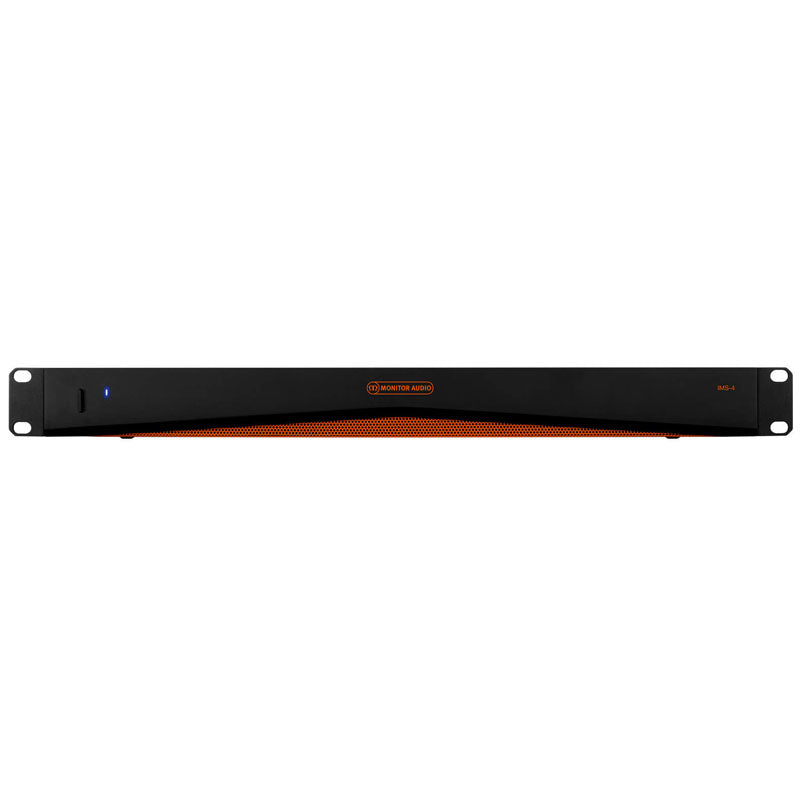

The IMS-4 music streamer is the latest addition to Monitor Audio range of superior custom install solutions. Its BluOS™ technology and controller app allow easy access to music libraries, streaming services and voice control using Alexa or Google Assistant.
The IMS-4 music streamer’s discreet design allows it to be easily incorporated into any custom installation project. And, its slimline form ensures that it occupies just 1U of rack space.
BluOS allows the IMS-4 to stream lossless music at a quality of up to 24-bit/192khz to 4 zones in a home network. Accessed through the app, or one of the many supported integrated control systems, the multiple IMS-4 streamers can be combined to provide up to 64 zones, with each zone able to play together in perfect sync. It can also simultaneously play different streams to separate zones.
The IMS-4 can access millions of Master Quality Authenticated (MQA) recordings using BluOS technology to allow music to be heard exactly as the artist intended, anywhere in the home.
To power the music, the IMS-4 should be partnered with an installation amplifier such as Monitor Audio IA150-8C. The IMS-4 can be integrated with Crestron, Control4 and RTI and is compatible with other BluOS enabled devices.
Analogue and digital inputs allow the addition of a cable box or other non-network sources and to make them available in every zone. The IMS-4 even includes a system interrupt to let doorbells and fire alarms be heard.
- Featuring BluOS™ multi-room streaming technology
- With four separate zones, different music can be streamed to four different rooms or areas
- Allows streaming of Lossless music with MQA authentication
- Integration with home automation services such as Crestron, Control4, RTI and other BluOS™ devices
- Controllable using the BluOS™ Controller app for iOS, Android, MacOS and Windows
- Compatible with Apple AirPlay 2
LED Blink Code
|LED Blink Code||Description|
|Short red flash, then flashing green||Powering up, rebooting|
|Solid red||Booting up|
|Solid red||Cannot boot up; drive error|
|Solid pale blue||Indexing|
Connected to network – ready to use with Bluesound App
No internet gateway
|Alternate flashing red and green||
Factory reset in progress
|Power (W / Channel) | 8 ohms:||100 W|
|Power (W / Channel) | Bridge (8 ohms):||320 W (1CH)|
|Input Impedance:||20 K ohms|
|Output Impedance (Loop RCA):||600 ohms|
|Input Sensitivity:||100 mV / 1 W, 1000 mV – Full power|
|Maximum Input Voltage:||2.9 V|
|Signal to Noise (SN:||R)|
|Frequency Response:||5 Hz – 50 kHz|
|Total Harmonic Distortion THD + N@1 KHz:||0.0003|
|Mains Operating Voltage:||100 – 120 V @ 60 Hz, 220 – 240 V @ 50 Hz|
|Fuse Type:||5 A (T5AL ~ 250VAC)|
|Standby Power Consumption:||<0.5 W (green mode)|
|Dimensions (Without Feet (H x W x D)):||42.4 x 438 x 427 mm|
|Dimensions (With Feet (H x W x D)):||52.8 x 438 x 427 mm|
|Width (including rack brackets):||482 mm|
Download the manual.
