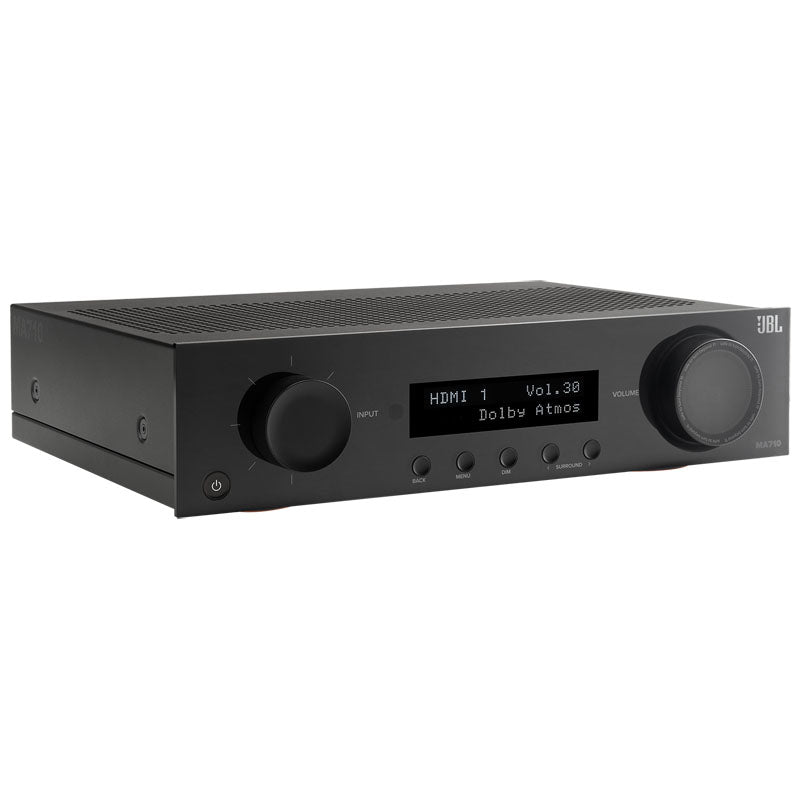

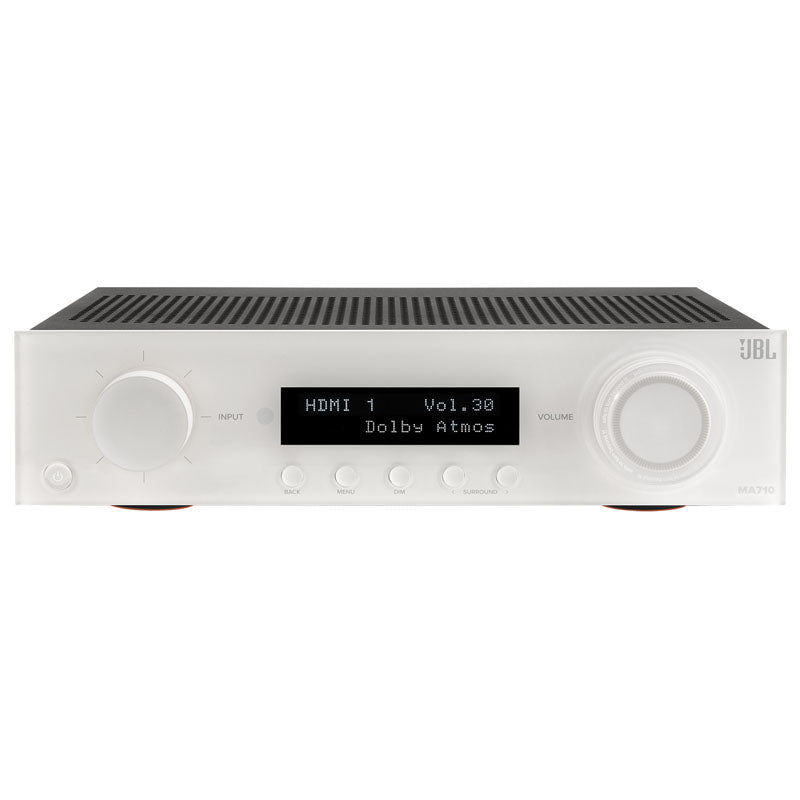

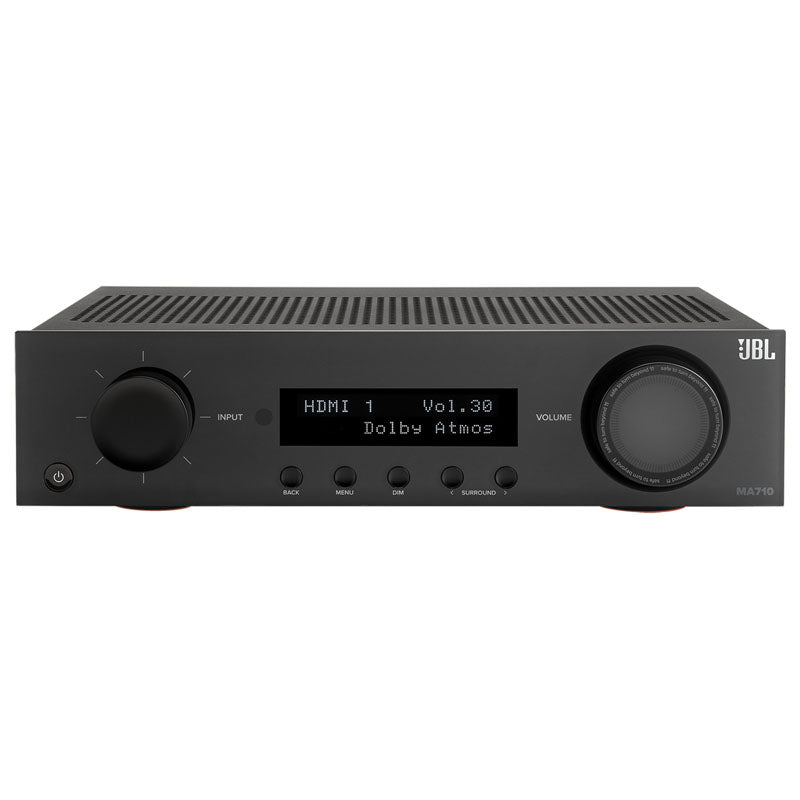

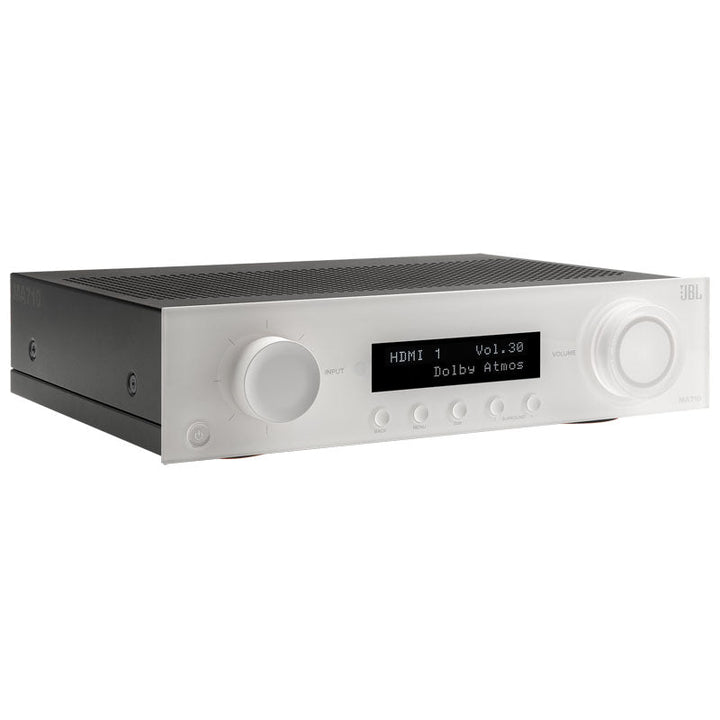

The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.
Highlights
- 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
- Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC
- Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations
- Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
- Moving magnet phono input for connecting a turntable
- On-screen display for easy system setup and operation (via HDMI)
- Seven channels of low noise Class D amplification for real world power to all channels
- EZ Set EQ provides easy-to-use room equalization for optimized sound quality
Amplifier Section | |
Channels | 7.2 |
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 110 W RMS |
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 160 W RMS |
Video Features | |
HDMI eARC | Yes |
HDMI Audio Return Channel | Yes |
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 3 |
HDMI 2.1 enhanced gaming features | Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) |
HDR 10+, Dolby Vision | Yes , Yes |
Audio Features | |
File format | MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps WMA: up to 48 kHz / 192kbps ALAC: up to 192 kHz / 24-bit FLAC: up to 192 kHz / 24-bit PCM / WAV / AIFF: up to 192 kHz / 24-bit |
Pure Direct | Yes |
EZ/Set EQ | Yes |
Front channel bi-amp | Yes |
DA converter | 192kHz/24-bit |

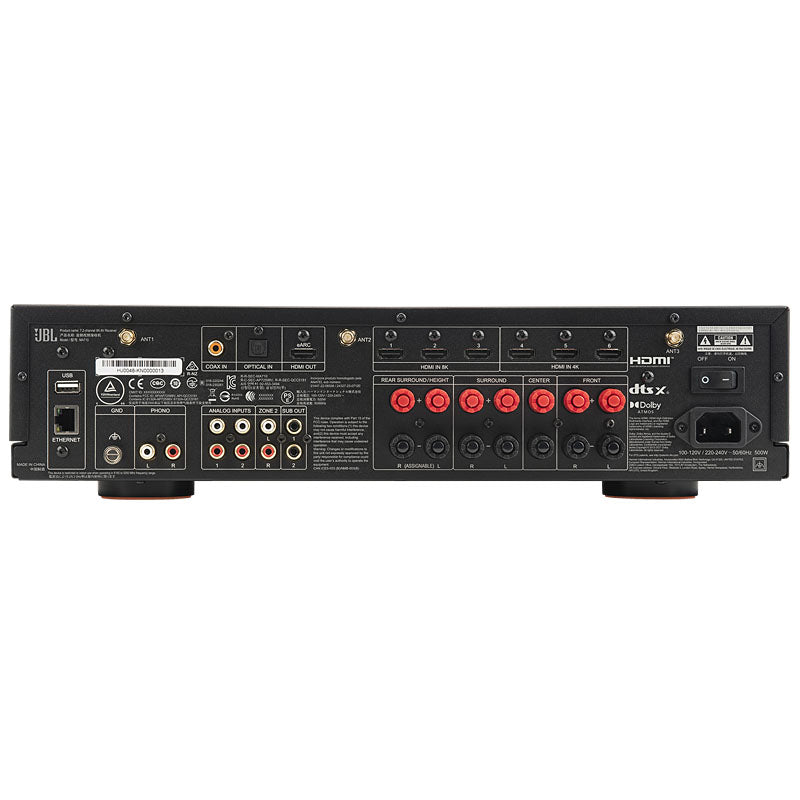

Connectivity | |
HDMI Input/Output | 6 / 1 |
Wi-Fi | Yes (2.4 / 5GHz) |
Bluetooth receive | Yes (v5.3, Low Energy, APTX HD, APTX Adaptive) |
Digital Audio Input | 1 Coax, 1 Optical |
Stereo analog input | 2 single-ended RCA |
Pre-Out (single ended RCA) | Stereo Zone 2, Subwoofer 1, Subwoofer 2 |
General | |
Mains voltage | 110 – 240V, 50–60Hz |
Max. power consumption | 500W |
Standby power consumption | <0.5W |
Dimensions incl. feet and speaker terminals (H x W x D) | 4.3” x 17.0” x 13.7” (109.9mm x 432.0mm x 347.6mm) |
Weight | 13.8lb (6.3kg) |

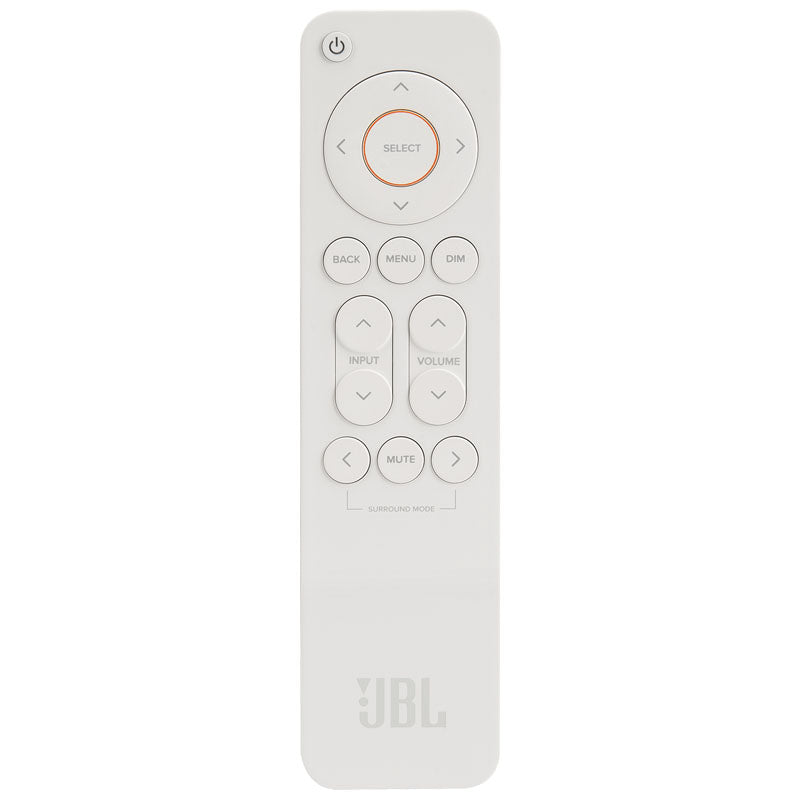

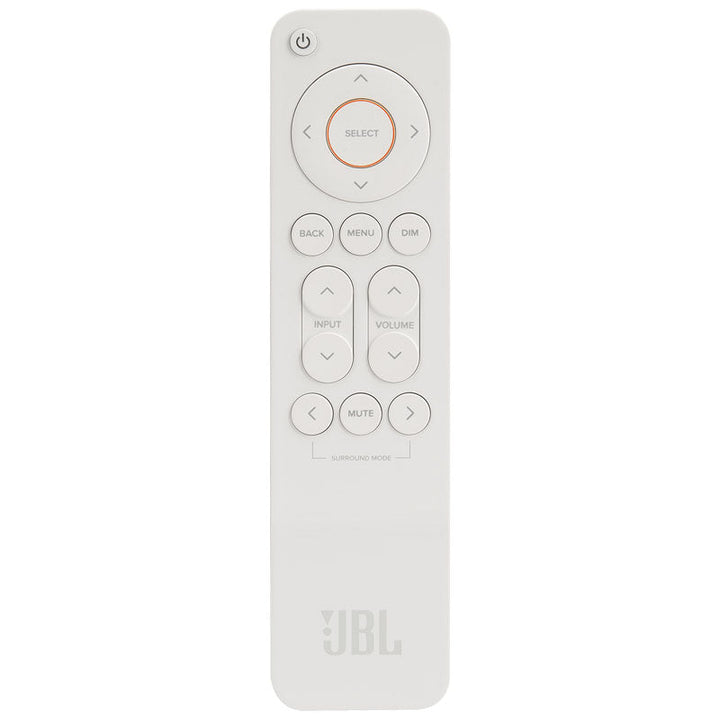

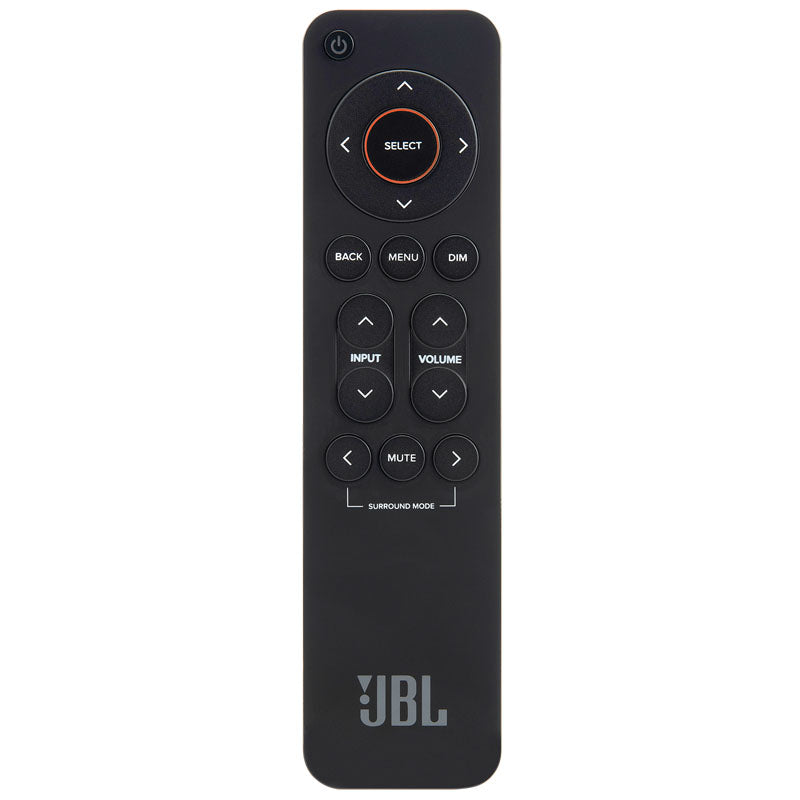

Supplied accessories | IR remote, 2x AAA batteries, Bluetooth antenna, 2x Wi-Fi antenna, power cord |
