Bowers & Wilkins CDA-2HD 2-Channel DSP Amplifier
The CDA-2HD is a high-performance distribution amplifier designed to power current and future Bowers & Wilkins Custom Installation loudspeakers. The integrated DSP enables optimization of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers. The amplifier features two channels of 500 watts of power each, and its 2U, half-rack-width design ensures high performance in minimal rack space.
| Audio Specifications | |
| Load impedance range: | >3Ω per channel (>6Ω in bridge mode) |
| Output Power per channel, non-clipped: | 250W into 8Ω, 212W into 8Ω* 500W into 4Ω, 424W into 4Ω* |
| Output Power bridge mode, non-clipped: | 1,000W into 8Ω, 848W into 8Ω* |
| Output Power total, all channels: | 1,000W short term, 848W short term* >250W continuous, >212W continuous* |
| DC offset voltage: | <50mV |
| Frequency Response (-3dB): | <10Hz to >30kHz, any load impedance |
| Frequency response accuracy 20Hz-20kHz: | +/-1dB |
| Dynamic range: | >85dB A-Weighted |
| THD+N (1kHz, 500W, 4Ω): | less than 1% |
| Voltage Gain: | 21dB to 45dB, adjustable |
| Input impedance: | 10KΩ |
| Maximum input voltage: | 4 Vrms |
| Signal sense threshold: | 2.5mV (independent of Gain setting) |
| Wake-up time: | <0.2s (If other zones active),<2s (From all zones inactive) |
| Turn-off time: | 15 minutes from last signal detected |
| 12V trigger input threshold: | typically 3V (recommended input is 5-15V) |
| Controls & Indicators | |

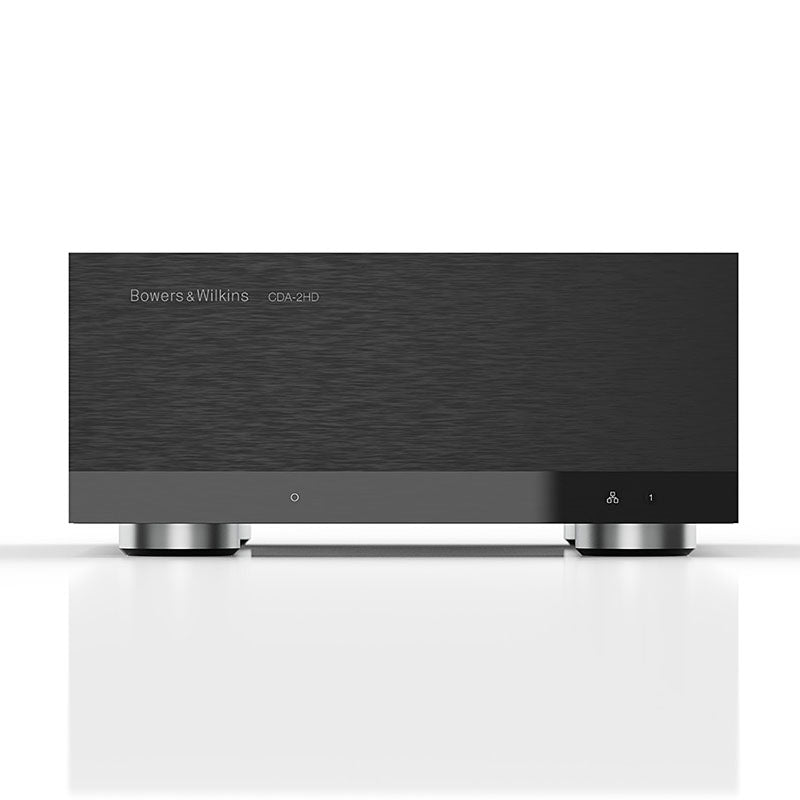

| Front panel: | 1 x Power LED (Unit active – White, Fault – Red) 1 x Network status LEDs (Network present – White, Fault – Red) 1 x Zone status LEDs (Signal present – White, Fault – Red) |

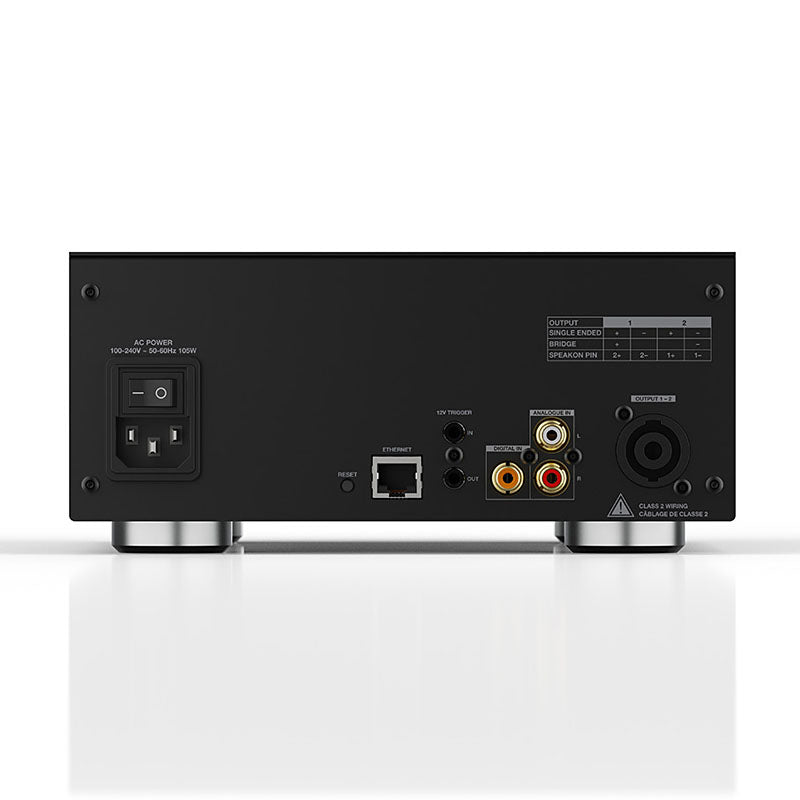

| Rear panel: | Reset button |
| Connectors | |
| Input: | 1 x RCA (pair) Phono socket Analogue line in 1 x RCA Phono socket Digital line in 1 x Ethernet |
| Output: | 1 x SpeakOn |
| 12V trigger control: | 1 x 3.5 mm jack - 12V trigger IN 1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through) |
| Power | |
| Power consumption: | <0.5W Standby, WoL disabled <0.5W Standby, WoL enabled 200W maximum average 2,800W peak |
| AC supply: | 100-240V 50/60Hz |
| AC inlet: | IEC C14, switched |
| Thermal | |
| Thermal dissipation: | 1.7 BTU/hr (standby) 150 BTU/hr (Idle) 850 BTU/hr (max) |
| Dimensions | |
| Height: | 85 mm (3.4 in) 1U [100 mm (3.9 in) plus feet] |
| Width: | 218 mm (8.6 in) |
| Depth: | 323 mm (12.7 in) |
| Net weight: | 3.4kg (7.5lb) |
| Finish: | Black |
