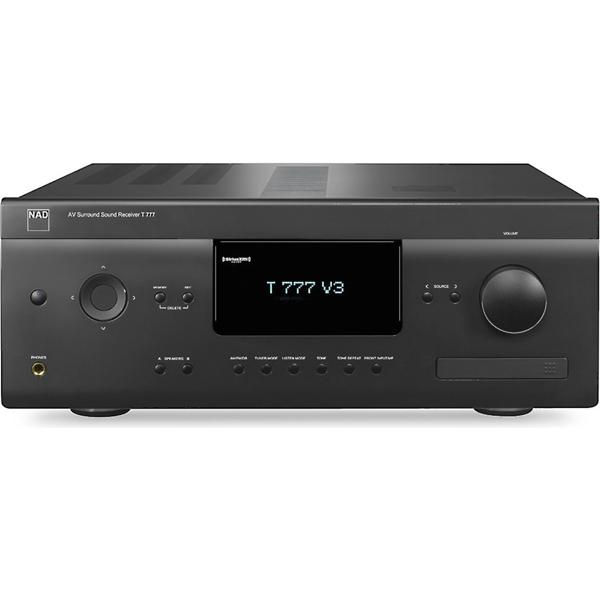

Introducing the T 777 V3 A/V Surround Sound Receiver
The T 777 V3 AV Receiver is packed with the latest audio and video technologies, including Dolby Atmos® surround decoding and 4K UltraHD (60p/4:4:4) video pass-through, letting you enjoy every moment and detail of your favourite movies, music, and entertainment. Designed with NAD’s legendary full disclosure approach to power ratings, the T 777 V3 features 80 watts of true power per seven channels and fills the room with rich cinematic sound. With built-in BluOS® technology, the T 777 V3 is part of the BluOS wireless multi-room ecosystem that allows you to stream hi-res audio, Internet radio, and popular music streaming services to your receiver with the control of a smartphone, tablet or desktop.
4K UHD Video Pass-Through
Using the latest and most advanced 4K chipsets, the T 777 V3 can pass- through standard definition and high-definition video sources including 4K Ultra HD with full compatibility for the latest 4:4:4 Pure Colour 4K Ultra HD specification. It also features full HDCP 2.2 compatibility, letting you enjoy the highest quality 4K videos with digital copyright protection.
Dolby Atmos Built-In
The T 777 V3 with Dolby Atmos® transports you from an ordinary moment into an extraordinary experience, with moving audio that fills your room and flows all around you. There are many options for creating the perfect Dolby Atmos theatre using the internal amplifiers for a 5.1.2 system, or adding external amplifiers to create a 7.1.4 speaker array. Regardless of the setup, the T 777 V3 creates a captivating layer of sound above the listeners, with pinpoint location of audio objects, and delivering the full excitement and realism of Dolby Atmos soundtracks
What's in the Box:
- 7.2ch AV receiver
- 6' AC power cord
- BluOS module (with WiFi dongle/Bluetooth dongle installed)
- Auto calibration microphone
- Main IR remote control (HTR 8)
- Zone 2 IR remote control (ZR 7)
- 4 "AA" batteries
- CR2025 Lithium battery
- 23" USB extension cable
- Front-panel input cover (pre-installed)
- Quick Setup Guide
- Internet Update Guidelines
- BluOS Quick Start Guide
- BluOS/Bluesound brochure
- Important Safety Instructions
- Warranty Information
| AMPLIFIER SECTION | |
| FTC | 7x140W |
| Full Disclosure Power (all channels driven simultaneously at full bandwidth at rated distortion) | 7 x 80W |
| IHF Dynamic Power 8 Ohms | 160W (22.0BW) |
| 4 Ohms | 260W (24.1dBW) |
| Total Harmonic Distortion at rated power | <0.08% |
| IM distortion at rated power | <0.08% |
| Damping Factor, 8 Ohms | >60 |
| Input Sensitivity and Impedance | 1.15V (ref. 8ohms, VOL at 0dB) |
| Frequency Response | ±0.8dB (ref. 1kHz, 20Hz-20kHz) |
| Signal/Noise Ratio | >92dB (ref. rated power at 8ohms, A-WTD) |
>82dB (ref. 1W at 8ohms, A-WTD) |
|
| PREAMPLIFIER SECTION | |
| Frequency response | ±0.5dB (ref. 20Hz – 20kHz) |
| Signal-to-noise ratio | >88dB (ref. 2V, A-WTD) |
| Total harmonic distortion | <0.01% |
| Input sensitivity | 330mV (ref. 2V) |
| Maximum output level | >4V |
| POWER CONSUMPTION | |
| Standby Power | <0.5W |
| Idle Power | >70W (120V version only) |
>63W (230V version only) |
|
| DIMENSION AND WEIGHT | |
| Unit Dimensions (W x H x D) | 435 x 172 x 425 mm |
| Net Weight | 20.5 kg |
| Shipping Weight | 24.2 kg |
-
