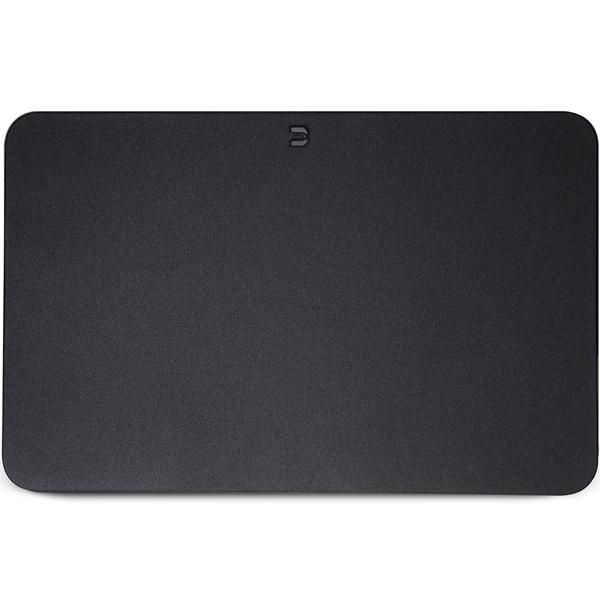

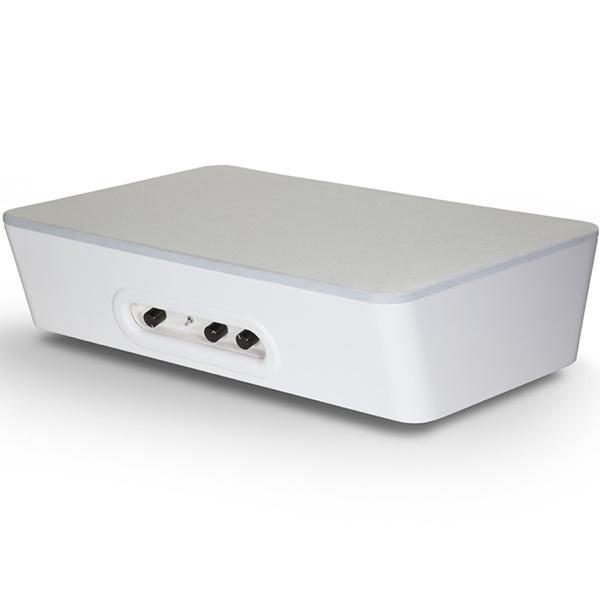

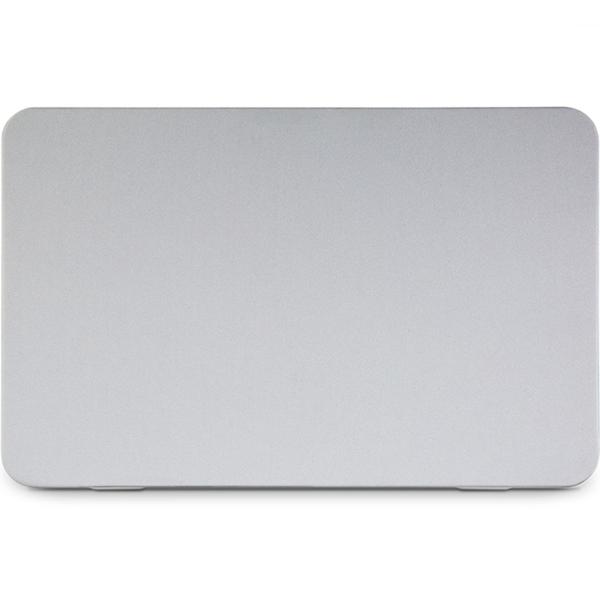

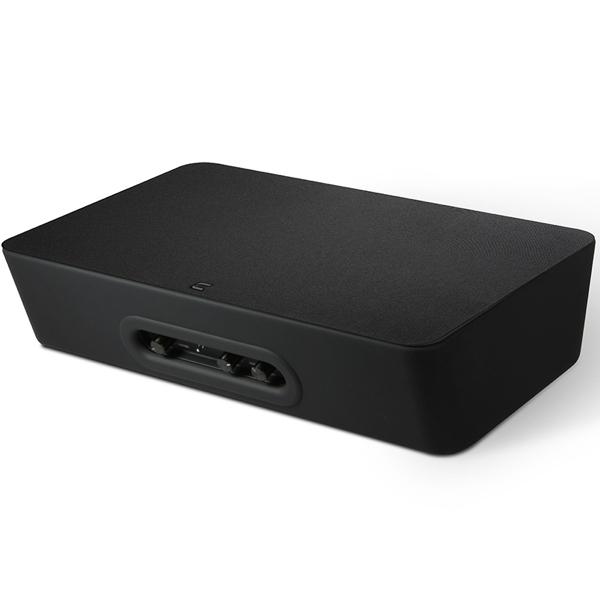

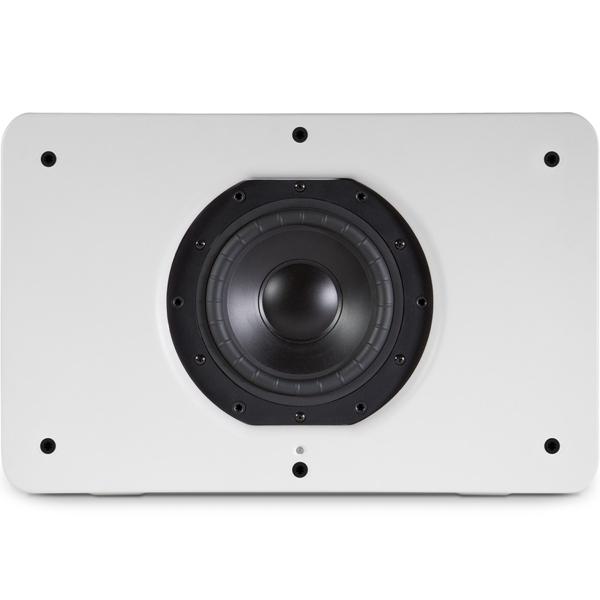

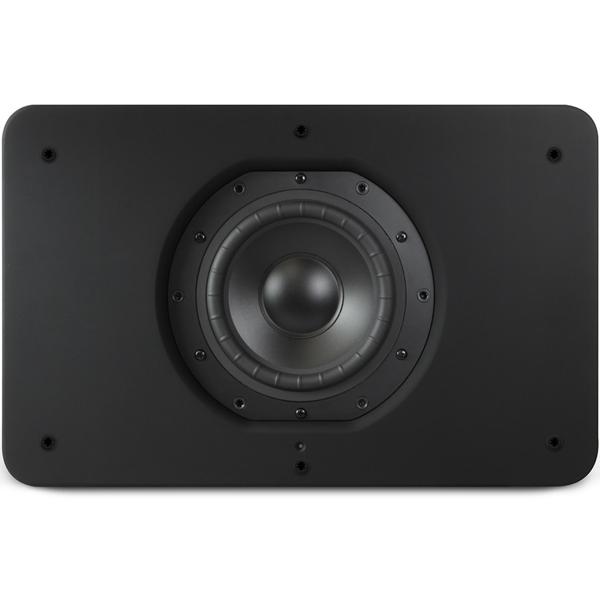

Small and Easy to Live With. With the PULSE SUB, Bluesound has reimagined the subwoofer. Most subwoofers are large cubes that don’t often fit very well in the typical living room. The PULSE SUB on the other hand, is a compact, slim, rectangular shape, allowing it to fit beside, behind, or underneath living room furniture. This room friendly design has several clever installation options.
PULSE SOUNDBAR meets PULSE SUB
The wireless transmitter in the PULSE SOUNDBAR automatically senses the presence of the PULSE SUB and adjusts its internal settings to redirect the lowest bass notes wirelessly to the wireless subwoofer. There is also the option of a wired connection as well. Perfect acoustic alignment in the crossover region is easily dialed in with the BluOS App for smartphones, tablets and laptops.
- 165MM POWERED SUBWOOFER 100 TOTAL WATTS DYNAMIC PEAK
- WIRELESSLY PAIRS WITH PULSE SOUNDBAR
- SUB VOLUME CONTROL
- SUB CROSS OVER CONTROL
- SUB PHASE CONTROL

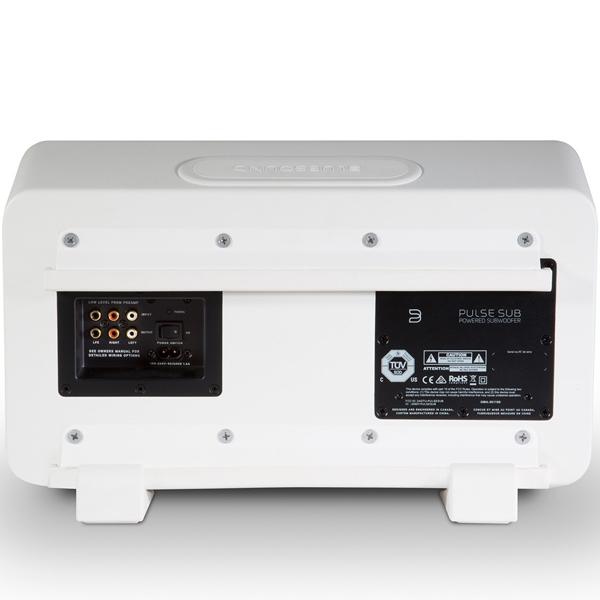

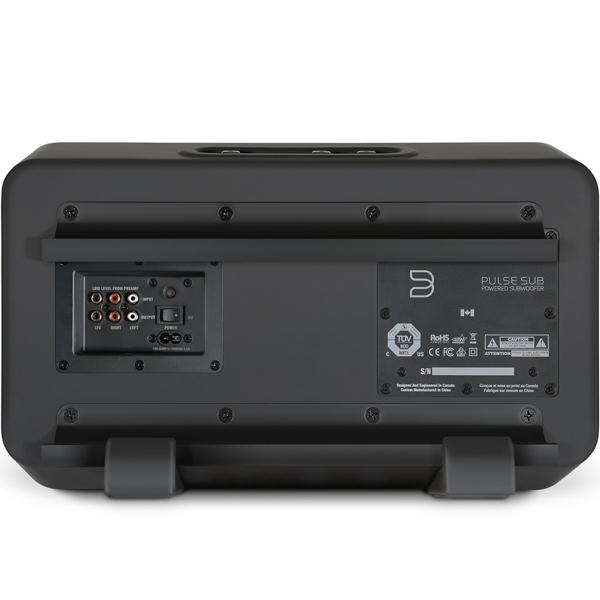

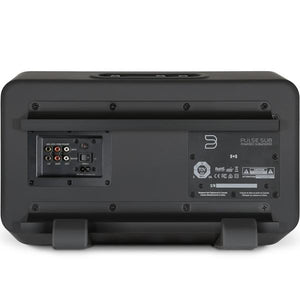

- LOW-LEVEL ANALOG INPUT & OUTPUT LFE INPUT & OUTPUT
- 0.5W STANDBY MODE
- BLACK FINISH

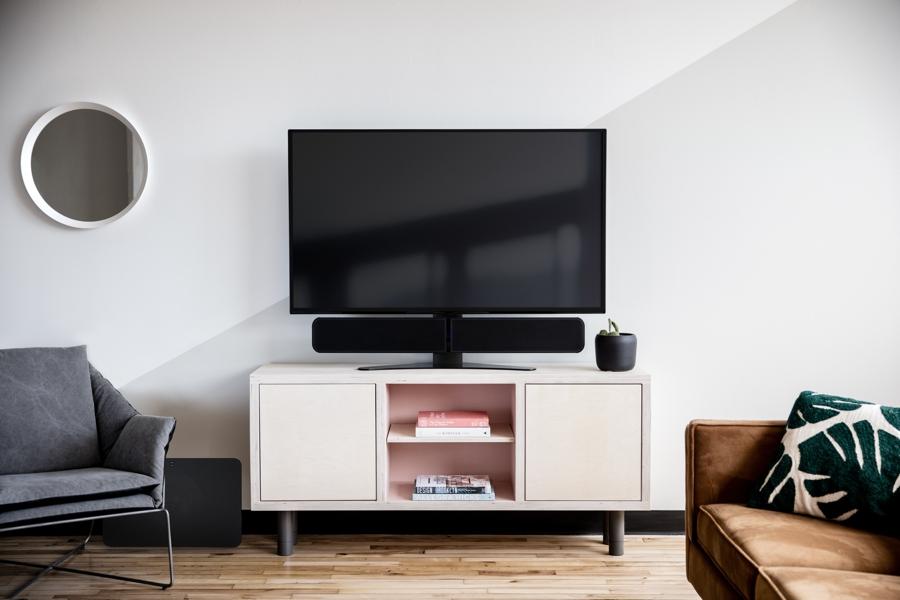

Place it Anywhere, Above or Below
A wall mount bracket is included to allow the PULSE SUB to be located almost anywhere in the room; no need to use up valuable dance floor space. All mounting hardware (screws not included) and simple instructions are included. The innovative rubber feet can also be used to stand the PULSE SUB vertically for placement behind or beside a sofa or chair, or it can be placed horizontally underneath a couch or end table.
Digs Deep and Plays Loud
The PULSE SUB may be small and room friendly, but it is also a full-fledged subwoofer carefully engineered to pump out prodigious quantities of well-defined, low distortion bass. With 100W of power from its cool running and highly efficient amplifier, there is plenty of power on tap to add weight to your favorite music, as well as excitement to your favorite movie soundtracks. Variable crossover frequency and phase alignment, along with volume adjustment allows the PULSE SUB to be used with any system, not just the PULSE SOUNDBAR.
Included Accessories:
- 120V AC Power Cord
- 230V AC Power Cord
- Wall Mount Bracket
- 2 Attachable Feet for Floor Stand
- Safety/Warranty Guide
- Quick Setup Guide
| FEATURES: | |
| Controls | Volume Control, Variable Frequency, Variable Phase 0o - 180o, Standby Control Switch, Pairing Mode Switch |
| Connections: | Low/Line Level Inputs & OutputsLFE Inputs & Outputs |
| Universal Voltage: | 100V-240V, 50/60Hz |
| Energy Star Compliance: | 0.5w Standby |
| Frequency Range: | |
| Response: | |
| On Axis @ 0°±3dB: | 26Hz - 150Hz |
| Off Axis @ 30°±3dB: | |
| LF Cutoff -10dB: | 20Hz |
| Amplifier Power: | |
| Continuous: | 100w |
| Dynamic: | 100w |
| Dynamic Peak: | 200w |
| Type: | CLASS D |
| Accoustic Design: | |
| Woofer (Nominal): | 6 1/2” (165mm) Polyproplene cone, Elliptical Surround |
| Crossover | 50Hz - 150Hz |
| DIMENSION AND WEIGHT | |
| Dimensions (WxHxD): | 447mm x 285mm x 122mm (not including feet or wall bracket) |
| Weight: | 6.91kg |
-
